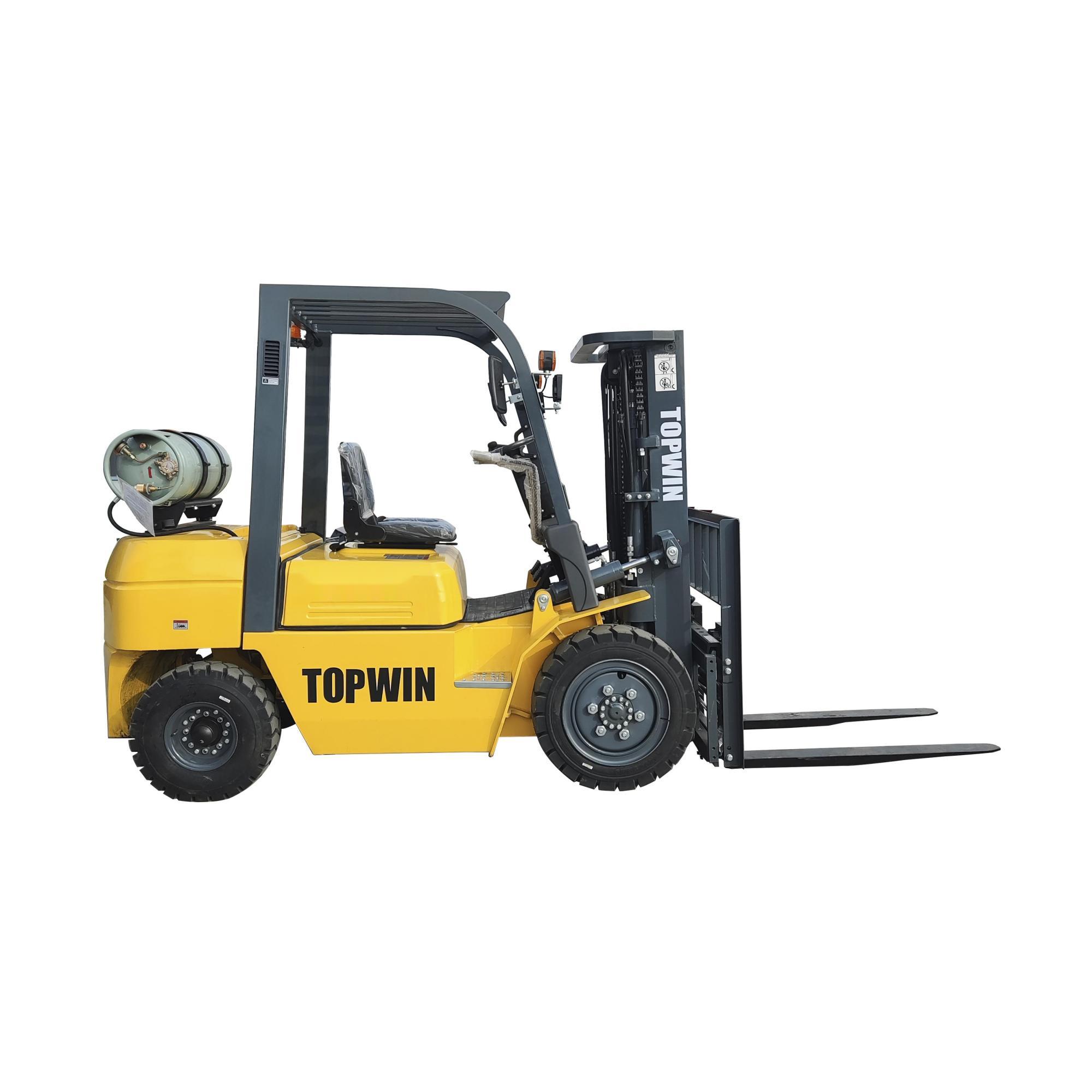

2.5 T LPG GASOLINE FORKLIFT
RATED CAPACITY
2500KG
LIFT HEIGHT
3000mm
| Model | FL20 | FL25 | FL30 | FL35 | FL40 |
| Rated lifting weight ,kg | 2000 | 2500 | 3000 | 3500 | 4000 |
| Load center ,mm | 500 | 500 | 500 | 500 | 500 |
| Power | LPG & | LPG & | LPG & | LPG & | LPG & |
| gasoline | gasoline | gasoline | gasoline | gasoline | |
| Max. lifting speed (full load) ,mm∕s | 400 | 400 | 505/475 | 505/450 | 300 |
| Max. travel speed (full load/unload) ,km/h | 17∕19 | 17∕19 | 18∕20 | 17∕19 | 18∕20 |
| Max. traction force (full load/unload), KN | 14∕9 | 15∕10 | 15.5∕10.5 | 16∕11 | 16.5∕11.5 |
| Grade-ability (full / no load) ,% | 15∕20 | 15∕20 | 15∕20 | 15∕20 | 15∕20 |
| H1 lifting height ,mm | 3000 | 3000 | 3000 | 3000 | 3000 |
| Free lifting height ,mm | 60 | 60 | 80 | 80 | 80 |
| Mast inclination (α front / β rear), degree | 6∕12 | 6∕12 | 6∕12 | 6∕12 | 6∕12 |
| Min. turning radius ,mm | 2450 | 2450 | 2530 | 2540 | 2720 |
| Min. right angle channel ,mm | 2050 | 2050 | 2110 | 2110 | 2320 |
| Min. ground clearance ,mm | 110 | 110 | 135 | 135 | 135 |
| A Overall length (including forks) ,mm | 3605 | 3605 | 3970 | 4000 | 4100 |
| B Overall width ,mm | 1160 | 1160 | 1230 | 1230 | 1230 |
| H Overall height (mast retraction) ,mm | 2095 | 2095 | 2110 | 2110 | 2110 |
| H2 Overall height (full extension of mast) ,mm | 4080 | 4080 | 4270 | 4270 | 4270 |
| H3 overhead guard height ,mm | 2095 | 2095 | 2110 | 2110 | 2110 |
| A1 front overhang ,mm | 451 | 451 | 465 | 465 | 470 |
| A2 wheelbase ,mm | 1640 | 1640 | 1775 | 1775 | 1900 |
| B1 wheel treat front ,mm | 970 | 970 | 1000 | 1000 | 1060 |
| B2 wheel treat rear ,mm | 970 | 970 | 970 | 970 | 970 |
| Front tyre | 7.00-12 | 7.00-12 | 28×9-15 | 28×9-15 | 250-15 |
| Rear tyre | 6.00-9 | 6.00-9 | 6.50-10 | 6.50-10 | 6.50-10 |
| Weight ,kg | 3320 | 3600 | 4250/4290 | 4660/4700 | 4900 |
| B3 fork width,,mm | 122 | 122 | 122 | 122 | 150 |
| H4 fork thickness ,mm | 40 | 40 | 45 | 45 | 45 |
| fork bracket height ,mm | 1000 | 1000 | 1225 | 1225 | 1225 |
| A3 standard fork length ,mm | 1070 | 1070 | 1220 | 1220 | 1220 |
| Engine | Japan Nissan K21 | Japan Nissan K21 | Japan Nissan K21 | Japan Nissan K25 | Japan Nissan K25 |
| Rated power kW | 31.2 | 31.2 | 31.2 | 37.4 | 37.4 |
| Transmission | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical |
